Gas/Air Leak Detector Gas/Air Leak Detector

Gas/Air Leak Detector

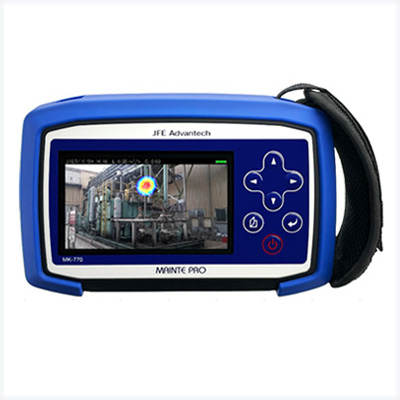

Gas Leak & Discharge Viewer MK-770

Gas Leak & Discharge Viewer MK-770

Detects and Displays Air/Gas Leak & Partial Discharge from a Safe Distance.

Features
1. Realtime Imaging : Displays air/gas leak or partial discharge as sound pressure map by calculating the sound arrival time differences to the microphones placed in our unique array.
2. Easy operation : In Auto mode, complicated settings are not necessary.
3. Noise Canceling : Algorithm that analyzes data and eliminates noise for less false detection.
4. Value assessment : Estimates air/gas leak amount and quantify loss cost.

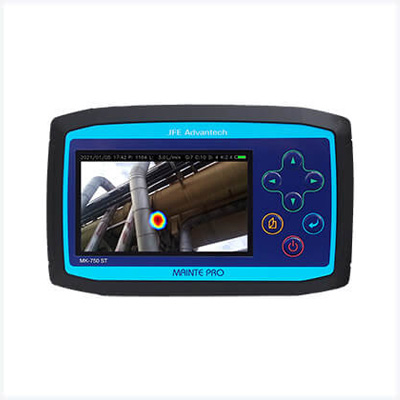

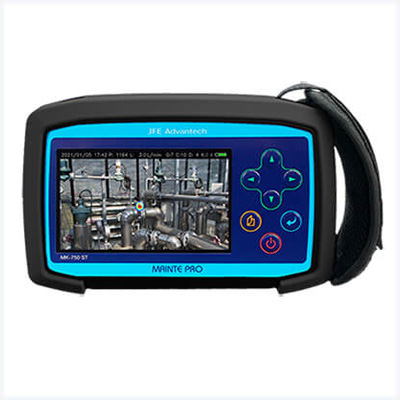

Gas/Air Leak Viewer MK-750ST

Gas/Air Leak Viewer MK-750ST

Visualizing of gas leak position makes it easy to find with a glance. MK-750ST detects ultrasonic waves from air leaks by array sensors.

Features
1. Small and lightweight! One hand operation available!
2. New TFT LCD that is easy to see outdoors!
3. Newly equipped "Approximate Leak Amount Displaying Function"!
4. Specifies leak position in wide range in short time.

Video

Gas/Air Leak Viewer MK-750

Gas/Air Leak Viewer MK-750

MK-750 detects ultrasonic waves from air leaks by array sensors, indicates sound pressure map on screen, and points the source of the sound.
(Hyogo No.1 manufacturing award in 2017, products and components section by Hyogo prefecture in Japan, Special prize by committee of Energy saving award in 2016, product and business model section by the Energy Conservation Center, Japan)

Features
1. Quick air leak detection from wide searching area (horizontal approx. 50°, vertical approx.30°)
2. Detection from far position is enabled.
3. Even in noisy circumstances, detection by ultrasonic wave works.
4. Indication of camera images with overlaid sound pressure maps which can be stored in SD card.

Video

Gas/Air Leak Checker MK-730Air

Gas/Air Leak Checker MK-730Air

Gas/Air leak checker with approximate leakage volume indication

Features
1. ±8° spot confirmed at ultrasound measurement
2. Identifies point of sound source with a laser pointer
3. Records measurement data
Easily transferable recorded data to PC via USB cable
4. Checking generated audible sound through an earphone

Multi-Checker MK-730

Multi-Checker MK-730

Detection of air leakage from pipe, abnormalities of rotating machine, discharge from electric receiving/distribution equipment.
MK-730 has all Three functions.

Features
1. ±8° spot confirmed at ultrasound measurement
2. Identifies point of sound source with a laser pointer
3. Records measurement data Easily transferable recorded data to PC via USB cable
4. Checking generated audible sound through an earphone
