Load Cells

We are proud of the quality of ultimate reliability manufactured by the technology developed in severe conditions of steel industry.
We fulfil the needs of customers with outstanding development capabilities.

: Proprietary development and in-house production.
: Extensive product lineup including Compression type, Sheave Bearing Type and model with built-in constrainer.
: Various made to order load cells such as big capacity load cells of 300 tf rated load or explosion proof load cells etc. are also available.
: We design and develop load cells that match the characteristics of the application, such as one for single unit use for force measurement or ones for multiple units use for weighing scales.

Products

●Standard Products ★Made-to-order

Shape	Model	Rated Load (kgf)							Rated Load (tf)										Accuacy (Non-linearity) (%)
Shape	Model	20	30	50	100	200	300	500	1	2	5	10	20	30	50	100	200	300	Accuacy (Non-linearity) (%)
	DF							●	●	●	●	●	●						0.05
	DF-KE							●	●	●	●	●	●						0.05
	DFS			●	●	●	●												0.05
	DFS-KE			●	●	●	●												0.05
	CB									●									0.1 to 0.2
	CBA										●	●	●	●	●				0.1 to 0.2
	HR									●						●	●	●	0.1 to 0.2
	HRA										●	●	●	●	●	●	●	●	0.02 to 0.03
	HR-II											●	●	●	●	●	●	●	0.02 to 0.03
	HRA-II															●	●		0.02 to 0.03
	ZT								●	●			●	●					0.03
	ZR								●	●	●	●	●	●					0.02 to 0.03
	ZR-KE												●	●					0.02
	KM			●	●	●		●	●	●	●	●	●						0.2 to 0.3
	KB	●	●	●	●	●	●	●											0.03
Shape	Model	20	30	50	100	200	300	500	1	2	5	10	20	30	50	100	200	300	Accuacy (Non-linearity) (%)

HR series is available in substantially safe explosion proof model.

Explosion proof load cells

Shape	Model	Rated Load (kgf)							Rated Load (tf)										Accuacy (Non-linearity) (%)
Shape	Model	20	30	50	100	200	300	500	1	2	5	10	20	30	50	100	200	300	Accuacy (Non-linearity) (%)
	DF-KE							●	●	●	●	●							0.05
	DFS-KE			●	●	●	●												0.05
	ZR-KE												●	●					0.02

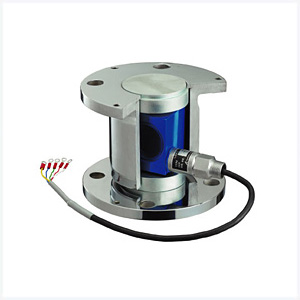

DF/DF-KE Load Cell with Built-in Constrainer

Waterproof stainless steel load cells.
Our special constrainer eliminates the needs for cross brace.

Application examples: Hopper scales, Platform scales

: Waterproof stainless steel load cells.
: Our special constrainer eliminates the needs for cross brace.
: Compact and identical size for ease of facility design.
: Explosion proof type is available (Explosion proof construction : Exd II BT4)
: Type I (photo) and Type II (Upper side mounting plate) are available.

DFS/DFS-KE Load cells with Built-in Constrainer

Compact and lightweight load cells with built-in restraint ensure ease of installation.

Application examples: Hopper scales, Platform scales

: Compact and lightweight for ease of installation.
: Made of stainless steel with excellent corrosion resistance.
: A wide range of products from small rated capacities.

CB/CBA Load Cells with Built-in Constrainer

Our special constrainer eliminates the needs for cross brace. The HR load cell with established reputation is integrated for easier use.

Application examples: Hopper scales

: Our special constrainer eliminates the needs for cross brace.
: Integrated with HR load cell with established reputation.
: Available from a wide product line up to high-capacity 490-kN (50-tf) rated load.

HR/HRA Compression Type Load Cells

Compact rectangular cylinder compression type. Automatic self-centering design with lateral load relief structure maintains high accuracy of weighing.

Application examples: Hopper scales, Crane scales

: Compact rectangular cylinder compression type.
: Accuacy class 1/500 to 1/1000.
: Waterproof hermetically sealed structure with nitrogen gas filled.
: Automatic self-centering design with lateral load relief structure maintains high accuracy of weighing.

HR II/HRA II Compression Type Load Cells

Compact rectangular cylinder compression type. High accuacy class 1/3000 to 1/5000

Application examples: Truck scales, Hopper scales, Platform scales

: Compact rectangular cylinder compression type.
: High accuacy class 1/3000 to 1/5000.
: Waterproof hermetically sealed structure with nitrogen gas filled.
: Automatic self-centering design with lateral load relief structure maintains high accuracy of weighing.

ZR Compression Type Load Cells

S-shape shear compression type load cells High accuacy class 1/3000 to 1/5000.

Application examples: Truck scales, Hopper scales, Platform scales.

: S-shape shear compression type.
: High accuacy class 1/3000 to 1/5000.
: Waterproof hermetically sealed structure with nitrogen gas filled.
: Automatic self-centering design with lateral load relief structure maintains high accuracy of weighing.

ZR-KE Explosion proof Compression Type Load Cells

Explosion proof Compression Type Load Cells. High accuacy class 1/5000

Application examples: Truck scales, Hopper scales, Platform scales

: Explosion proof type (Exd II BT4).
: Accuracy class 1/5000.
: Waterproof hermetically sealed structure with nitrogen gas filled.
: Automatic self-centering design with lateral load relief structure maintains high accuracy of weighing.

ZT Tensile Type Load Cells

S-shape shear Tensile type load cells High accuacy class 1/3000.

Application examples: Platform scales, Hopper scales

: S-shape shear tensile type load cells.
: High accuacy class 1/3000.
: Waterproof hermetically sealed structure with nitrogen gas filled.
: Universal joint is included.

BH Sheave Bearing Type Load Cells

Compression-type bearing sheave type for shaft built-in Designed for off-center loads and inclined loads.

Application examples: Crane scales, Detection of crane overload.

: Compression-type bearing sheave type for shaft built-in.
: Accuracy class 1/500 to 1/1000.
: Designed for off-center loads and inclined loads.
: Minimal size with direct inserting of shaft.

CT Tensile Type Load Cells

Tensile type with compact rectangular cylinder. Short distance between load bearing.

Application examples: Crane scales, Detection of crane overload.

: Compact rectangular cylinder tensile type.
: Accuracy class 1/1000.
: Short distance between load bearing.
: POINT a safety factor of 5.
: The best choice for detection of crane overload.

TM-H/TM-V/TM-HA/TM-HB Plate Type Load Cells model

Simple in design for installation under a bearing. Accurately detect horizontal or vertical load enables to measure tensile strength in high accuracy.

Application examples: Tension meter, Force measurement

Brochure Download

: Simple in design for installation under a bearing.
: Accurately detect horizontal or vertical load enables to measure tensile strength in high accuracy.
: Waterproof hermetically sealed structure with nitrogen gas filled.
: Durable, all stainless-steel construction for severe environment.

SPL Plate Type Load Cells

Liner type allows for flat installation Various types for different operating environments (waterproof, dustproof, high temperature) available.

Made to order on customer’s demand.

Application examples: Roll measurement, Detection of crane overload, Force measurement

: Liner type allows for flat installation.
: Flat Shearing type.
: Waterproof hermetically sealed structure with nitrogen gas filled.
: Various types for different operating environments (waterproof, dustproof, high temperature) available.
: Made to order for customer’s applications in special sizes available.

KM Compact Compression Type Load Cells

Compact, Lightweight and High accurate. Waterproof hermetically sealed structure. Compact and lightweight for ease of installation. Made of stainless steel.

Application examples: Hopper scales, Force measurement
